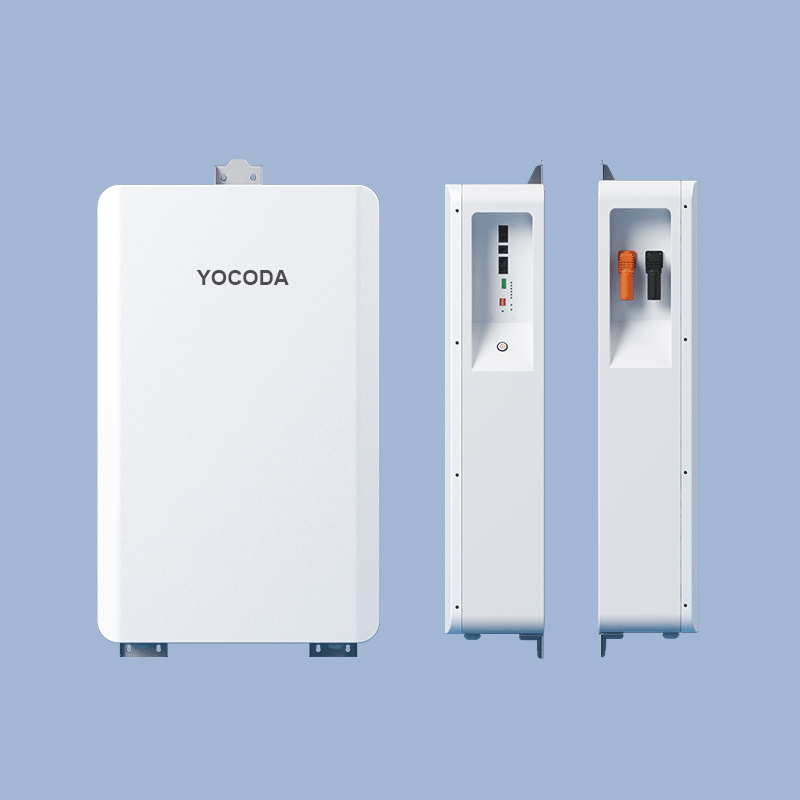

Powerwall 0510 LiFePo4 Battery 5Kw/10Kwh Solar Energy Storage System
$8999.00 $6200.00
48V Lifepo4 Battery Solar Power Wall Lithium Battery Pack 5Kwh/10Kwh For Home System
Features:
1.High integrated with less installation space.
2.Long life cycle, >3000 times at 80% DOD.
3.Without heavy metals and environment friendly.
4.Maintenance free, no memory effect.
5.Internal BMS with full protection, high voltage protection with higher reliability.
Battery Data | |
Nominal Voltage | 51.2V |
Nominal Energy | 10.2kWh |
Discharge Voltage | 45~58V |
Charge Voltage | ~54V |
Cont. Charge Current | 50A |
Max. Charge Current | 90A |
Cont. Discharge Current | 60A |
Max. Discharge Current | 100A |
Cont. Discharge DC Power | 5000W |
Operating temperature | 0℃ ~ 45℃ （Charge） -20℃ ~ 50℃（Discharge） |
General Data | |
DOD | 90% |
Communication | CAN2.0 / RS485 |
Cycle Life | ＞3000 |
IP Grade | IP30 |
Installation | Wall or Floor mount |
Dimension | 830×460×205mm |
Weight | 90.5kg |
Warranty | 3Years |
