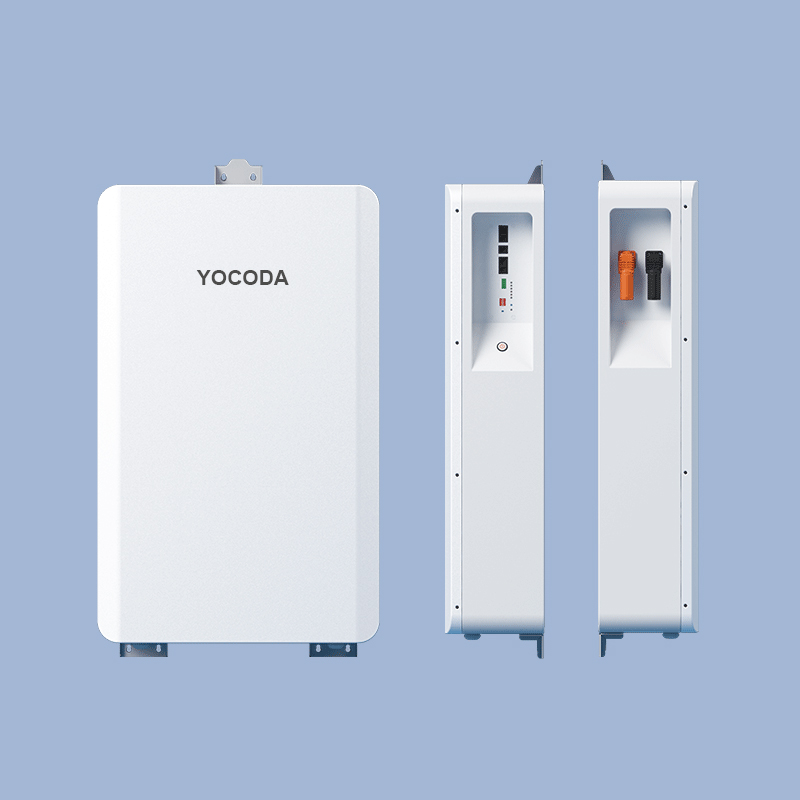

Powerwall 0305 LiFePo4 Battery 3Kw/5Kwh Solar Energy Storage System

$4999.00 $3200.00

48V Lifepo4 Battery Solar Power Wall Lithium Battery Pack 3Kwh/10Kwh For Home System

Features:

1.High integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.

3.Without heavy metals and environment friendly.

4.Maintenance free, no memory effect.

5.Internal BMS with full protection, high voltage protection with higher reliability.



undefined



Datasheet Powerporter 5.0

Battery Data

Nominal Voltage

51.2V

Nominal Energy

5.1kWh

Discharge Voltage

45~57.6V

Charge Voltage

~54V

Cont. Charge Current

50A

Max. Charge Current

90A

Cont. Discharge Current

50A

Max. Discharge Current

100A

Max. Discharge DC Power

5000W



Operating temperature

0 ~ 45 Charge

-20 ~ 45Discharge

General Data

DOD

90%

Communication

CAN2.0 / RS485

Cycle Life

3000

IP Grade

IP31

Installation

Wall or Floor mount

Dimension

685×460×165mm

Weight

47.5kg

Warranty

3 Years
