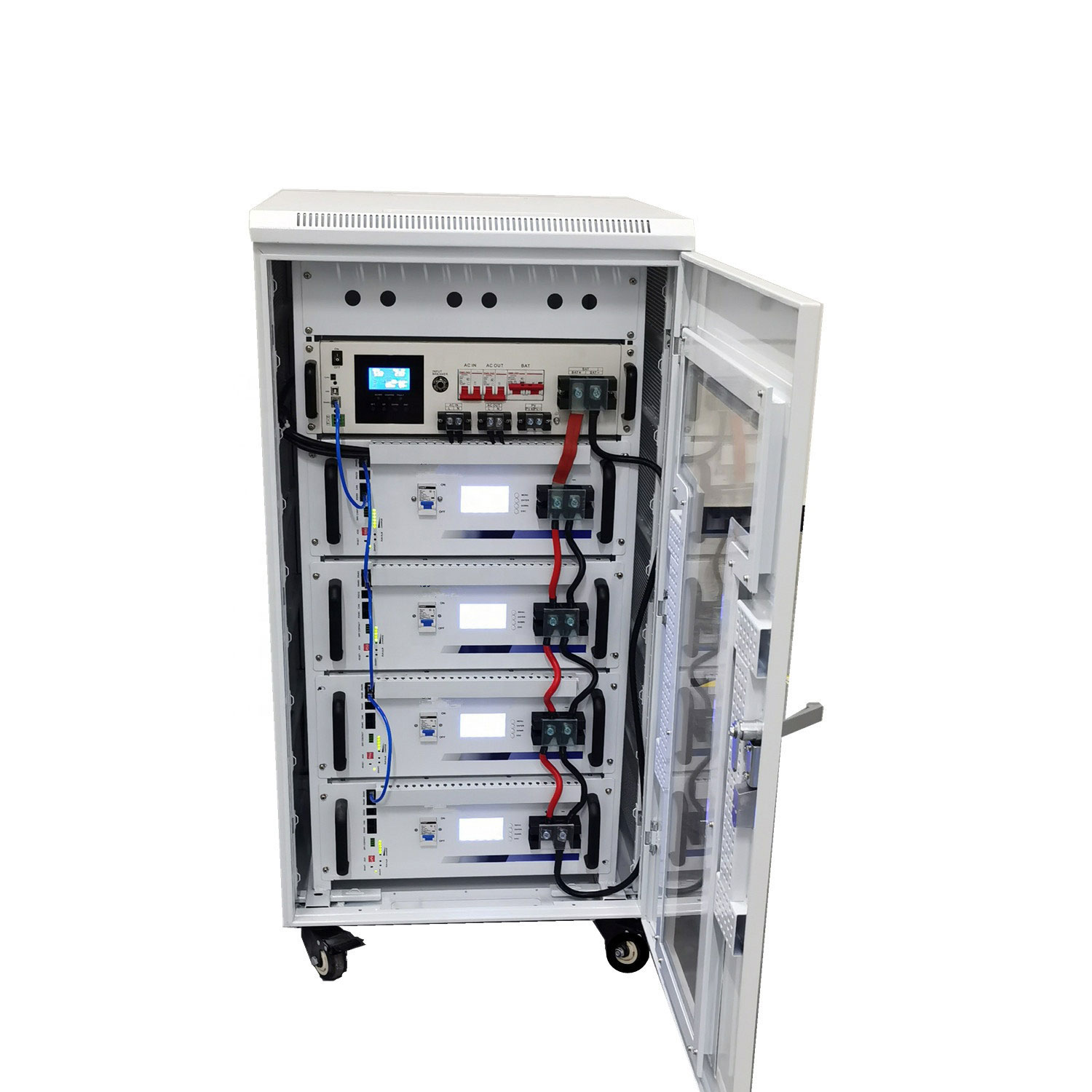

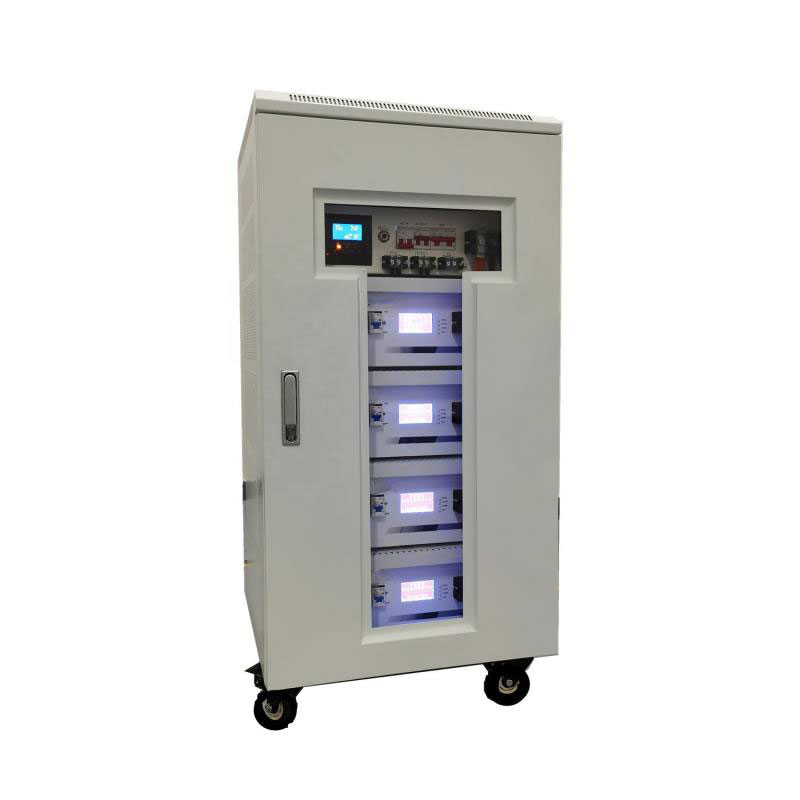

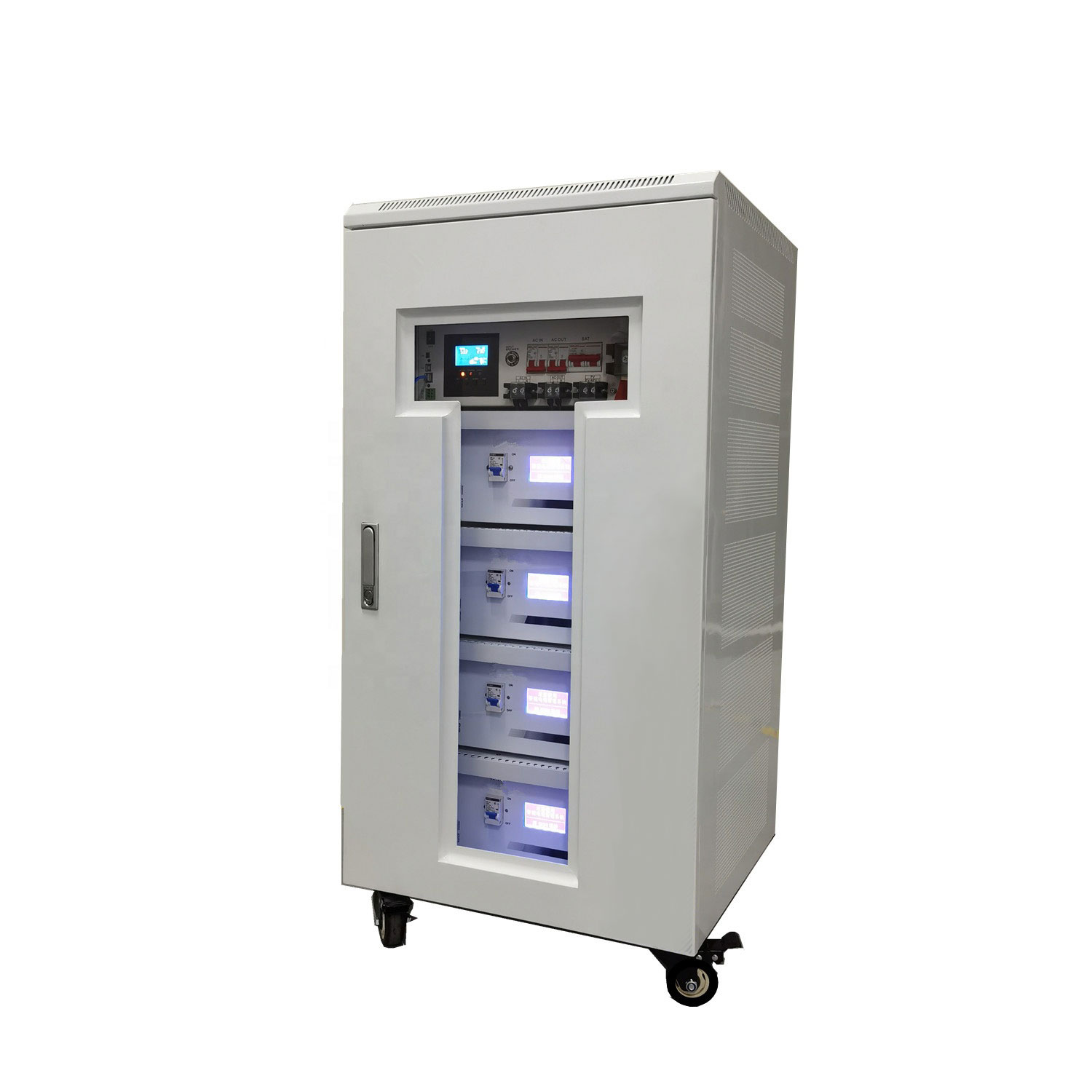

10kwh to 50kwh LiFePO4 Battery Pack All in one ESS 48V 400Ah Home Solar Energy Storage System
Features
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Battery Data | |
Nominal Voltage | 51.2V |
Nominal Energy | 20.4kWh |
Operating Voltage | 40~58.4V |
Charge Current | 60A |
Discharge Current | 100A |
Inverter Power | 5KW/Off-grid/Backup |
General Data | |
Dimension | 1200×600×600mm |
Weight | 260kg |
IP Grade | IP20 |
Operating Temperature | 0℃~45℃ |
Storage Temperature | -20℃~45℃ |
Features | |
DOD | 90% |
Cycle Life | >3000 |
Communication Port | CAN2.0 / RS485 |
Warranty | 5 Years |
